Intraplex® HD Link™

Digital 950 MHz STL and Data Gateway

Share this page on Facebook Share this page on Twitter Share this page on LinkedIn Share this page via email

Now thru July 31, 2017 -- Intraplex IP Link 100p Bundle: $5,455 (a savings of $1,775)! Contact us to learn more! Flexiva FAX 50 Compact Exciter Try Before You Buy Event - Click Here to Learn More Contact your local sales representative today. Click here! Want to Know How to Accelerate Your ROI? Click Here!

Cool Stuff Award 2009: Intraplex® HD Link™ Pick Hit 2009: Intraplex® HD Link™
OVERVIEW

The next generation of digital STL

Our challenge: to design a studio-to-transmitter link (STL) for your most demanding 950 MHz applications — one as reliable and robust as Intraplex® T1 and IP audio links. Digital STL manages much more than audio, so installation and configuration need to be straightforward, not a science project. Data should not be optional, requiring additional boxes and complexity. Your STL should be ready, out of the box, for AM, FM and HD Radio™, as well as future multimedia applications.

Earlier digital STLs were not designed for IP data transport. Adding IP data to them required optional modules and external add-ons, and many engineers working on HD Radio installations reported spending much time and money trying to eliminate glitches.

Our solution: HD Link™ is designed to manage all HD Radio™ transport scenarios, regardless of where you place your importer and exporter. Its two prioritized Ethernet paths give preference to HD Radio™ data over control and other LAN/WAN data. It supports both UDP and TCP, and even handles the switching of TCP return packets over asymmetric IP paths with plug-and-play simplicity.

HD Link offers RF power to spare, an integrated IP gateway with sophisticated data handling capabilities, and multiple channels of audio. The intuitive front panel and remote interfaces tap into the most complete feature set of any microwave STL, yet take less time to configure. It can even operate on both RF and IP simultaneously, and allows automatic backup of all services from one to the other.

Intraplex is broadcasting’s first choice for rock-solid, full-time operation of T1 STLs. With HD Link, you can now count on the same dependable performance, superior support and long-term value for your microwave links.

Main Features of Intraplex® HD Link™

Powerful, reliable RF performance

  • Up to 5 W of RF power
  • Harris Broadcast-designed transmitter and receiver with 200, 250, 300, 375 or 500 kHz of RF bandwidth
  • Low-density parity check (LDPC) coding advanced error correction — requires less receive signal than Reed-Solomon to achieve an equivalent bit error rate (BER), a critical parameter for glitch-free HD Radio performance
  • State-of-the-art modulation technology operates at 32, 64, 128 or 256 QAM, providing more than 3 Mb/s throughput under optimal conditions
  • Built-in circulator provides a high degree of isolation and VSWR protection

Designed for data

  • Integrated IP channel with up to 1.5 Mb/s throughput for HD Radio (importer-to-exporter or exporter-to-exciter)
  • At least three times the nominal IP data throughput of other digital STLs
  • Does not require an external adapter to work with an external TCP return path — suitable for use over private and public networks
  • Capable of taking advantage of available IP audio paths to provide integral backup in the event of radio link failure
  • Two prioritized Ethernet ports — high priority for HD Radio traffic, low priority for control data and LAN traffic
  • Each main program channel includes an RS-232 asynchronous data channel, up to 9600 b/s

Superior multichannel audio performance

  • One or two stereo main program channels, each available with linear uncompressed or Enhanced apt-X® compressed audio
  • User-selectable 32, 44.1, or 48 kHz sample rates—transports 15, 20 or 22 kHz audio
  • Two monaural, 7 kHz audio channels with G.722 coding available for AM, radio reading services, SCA, EAS and other auxiliary audio applications

Easy setup and reliable operation

  • Advanced Web browser user interface and SNMP remote control
  • Front-panel Ethernet port for access to Web GUI and diagnostics
  • USB port for saving configurations and updating software
  • FTP access for remote software uploads
  • User-configurable control input and alarm output contacts

Convenient connections and display

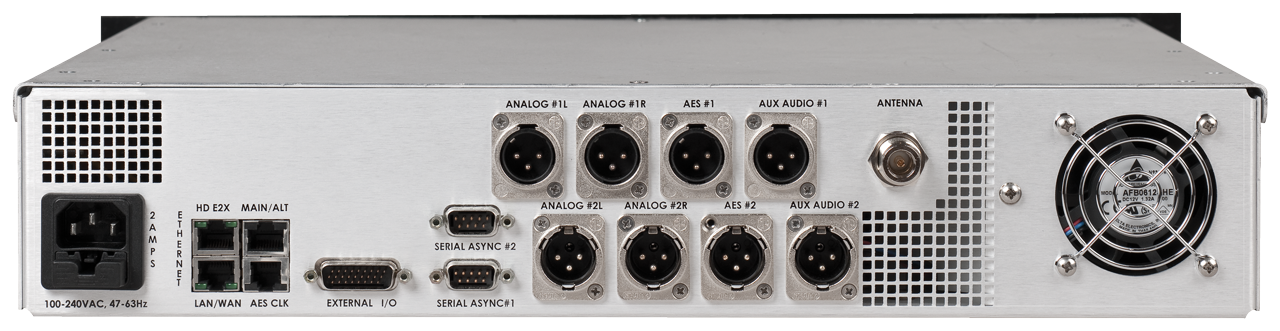

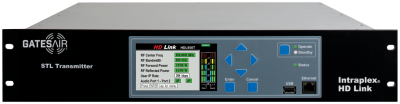

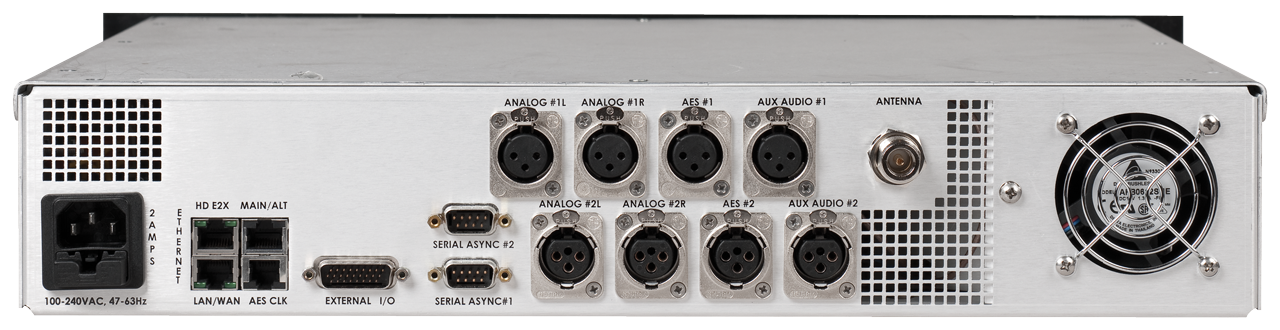

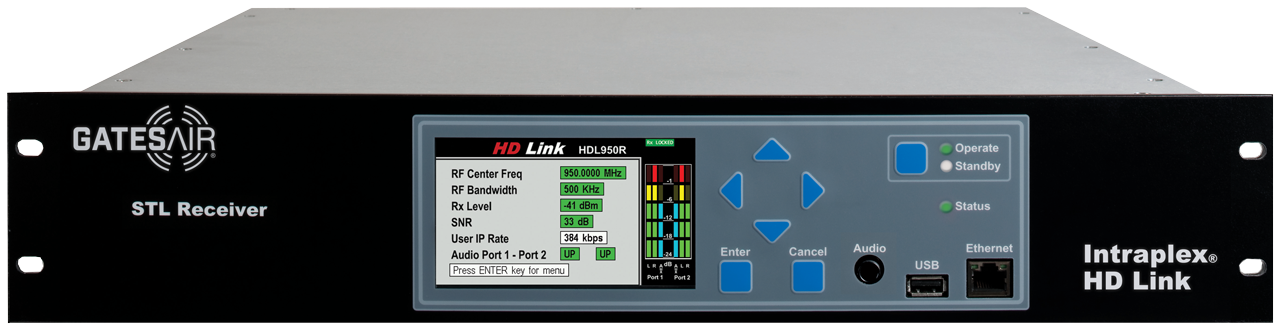

  • Intuitive front-panel interface
  • XLR AES/EBU digital and L/R analog input/output connectors
  • Headphone jack on the receiver for audio monitoring
  • AES/EBU sync port on the receiver
  • LCD level displays for all audio programs at each end
  • Analog level outputs for forward power and reflected power (on transmitter unit) and for received signal level and signal-to-noise (on receive unit)
  • Optional main/alternate interface for redundancy switching
