Flexiva™ FMXi 4g
Embedded HD Radio™ Program Importer/Exporter
OVERVIEW
Offering the simplest and most cost-effective transition to HD Radio, the new GatesAir Flexiva FMXi 4g combines Importer and Exporter functions into a single embedded device that provides dynamic time, level, and phase correction.
The FMXi 4g employs integrated HD Radio Diversity Delay control software that ensures proper time alignment between your analog and digital signals, and improves the listener experience by removing objectionable blending artifacts. This embedded solution eliminates boot-up processes, problematic operating system upgrades, and troublesome PC-based applications. Broadcasters no longer require a standalone, computer-based Importer or Exporter, which also removes moving parts from a particularly sensitive element within the architecture.
The FMXi 4g accepts, manages, and multiplexes all HD Radio Advanced Applications Services (AAS). This includes supplemental audio channels into the HD Radio data stream that are combined into the main program services and sent to the exciter. The FMXi 4g can provide new revenue with additional data services and multiple audio programs.
With the proliferation of multicasting and datacasting on HD Radio, the FMXi-4g makes it easy to add HD2, HD3 and even HD4 broadcast, as well as HD Radio PAD (program-associated data), album art, station logos news, traffic, weather and other text and graphical content to the HD Radio broadcasts.
The FMXi 4g’s Web-based user interface provides convenient control of the HD Radio modes and bandwidth configurations. The Xperi HD codec and encoding algorithms of the HD Radio system are built-in, enabling connection to an Exgine exciter for advanced services.
Main Features of Flexiva™ FMXi 4g
Flexiva FMXi 4g Features
- Fourth generation Importer/Exporter in a single box solution
- Embedded solution for maximum reliability
- No costly and unreliable consumer operating system to update or configure
- Automatically resolves Analog / HD Diversity Delay without user intervention
- Resolves Audio Level and Phase correction without user intervention
- Off-air monitoring of HD primary and secondary audio program channels
- Supports Artist Experience
- HD logging and alarms capabilities
- Configurable MPS, SPS, and data bitstream
- Full support of SFN
- Web Browser for local user and remote access
- Space efficient 1 RU chassis
Main Features of Flexiva™ FMXi 4g
Flexiva FMXi 4g Features
- Fourth generation Importer/Exporter in a single box solution
- Embedded solution for maximum reliability
- No costly and unreliable consumer operating system to update or configure
- Automatically resolves Analog / HD Diversity Delay without user intervention
- Resolves Audio Level and Phase correction without user intervention
- Off-air monitoring of HD primary and
Product Literature
- Data Sheet for Flexiva™ FMXi 4g [pdf, 823 KB]
- Presentations
- Digital Radio: A Review of the Latest Standards - HDRadio, DAB, and DRM 5/5/2020 [pdf, 4 MB]
- Intraplex Audio Systems: Customer Use Cases 4/21/2020 [pdf, 3 MB]
- Next Generation Radio Transmission Systems 4/9/2020 [pdf, 7 MB]
- Press Releases
- GatesAir Adds to Flexiva GX Transmitter Family 3/19/2024
- GatesAir Supplies FM and HD Radio Systems to WAY Media Stations 10/25/2022
- GatesAir Supplies KAKT(FM) with End-to-End HD Radio Solution 8/7/2019
- GatesAir Embedded HD Radio Importer and Exporter Solutions Power Radio Strategy at 2019 NAB Show 3/19/2019
- GatesAir Simplifies HD Radio Architecture with New Software-Embedded Solutions 3/26/2018
Product Literature
- Data Sheet for Flexiva™ FMXi 4g [pdf, 823 KB]
- Presentations
- Digital Radio: A Review of the Latest Standards - HDRadio, DAB, and DRM 5/5/2020 [pdf, 4 MB]
- Intraplex Audio Systems: Customer Use Cases 4/21/2020 [pdf, 3 MB]
- Next Generation Radio Transmission Systems 4/9/2020 [pdf, 7 MB]
- Press Releases
Photo Gallery
Video
Flexiva™ FMXi 4g
Taking Your HD Signal to the Next Level Using Gen4 Technology (from 2020 Radio Show webinar)

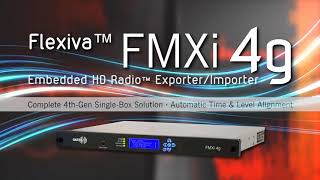

HD Radio™ Streamlined and Redefined with the Flexiva™ FMXi 4g
